2 Car Garage Plan 41349

• PDF File: $985.00
• 1 Set: $385.00 **
• 5 Sets plus PDF File: $630.00
• CAD File: $1,095.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $75.00
• Right Reading Reverse: $100.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $30.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $110.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Upper Living Area:	494 sq ft
Bonus Area:	240 sq ft
Garage Area:	780 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4 - * $110.00 2x6
House Width:	42'0
House Depth:	30'0
Number of Stories:	2
Max Ridge Height:	25'3 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	50 psf
Roof Framing:	Stick
Main Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Storage Space
• Workshop

Craftsman Style Garage Plan

This Craftsman garage plan can park up to two cars. Both doors are the same size at 9' wide and 8' tall. Along the side is a shop with access from double doors from the garage or a garage door that is 6' wide and 7' tall. In the back is a set of stairs that lead up to an attic.

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

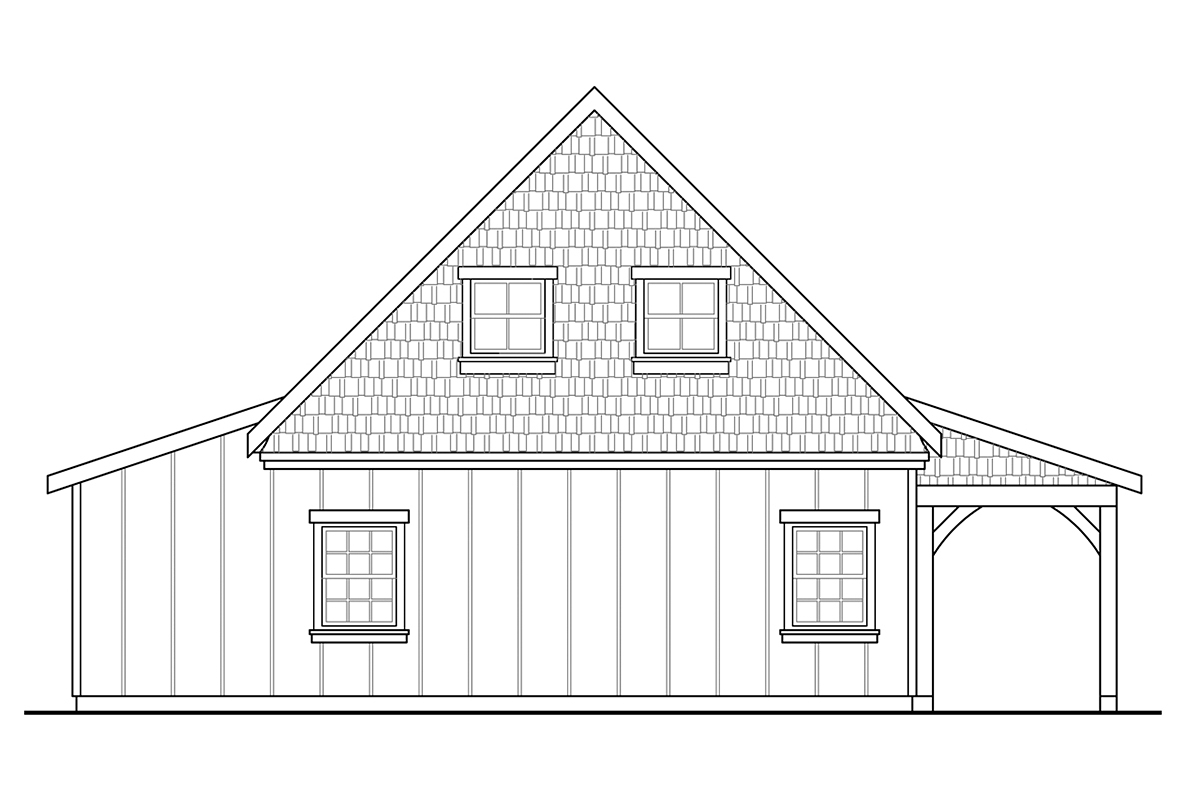

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

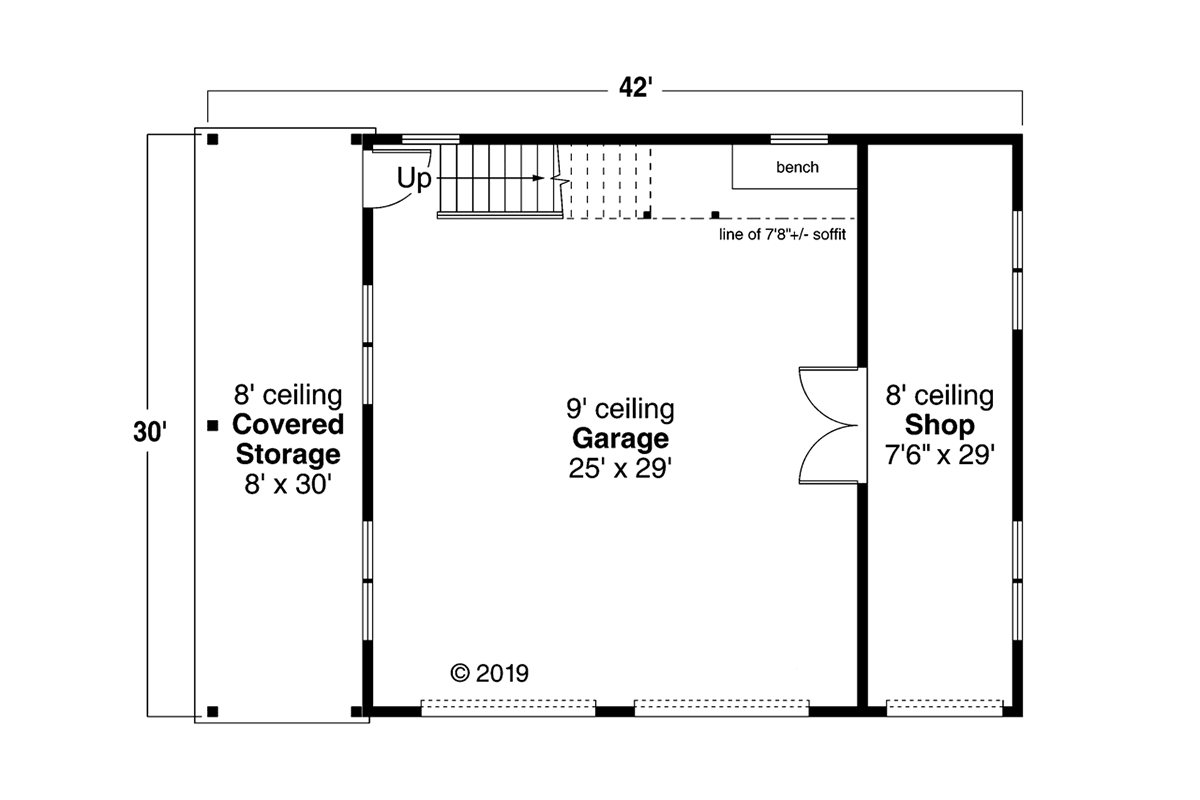

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.

Receive a FREE modification estimate:

1) Please Email Us your changes. (Itemized list of changes with details)

We are sorry, but an estimated cost build report is not available for this particular plan.
